Drilling Rig Fundex F2800

Drilling Rig Fundex F2800
  • Drilling Rig Fundex F2800

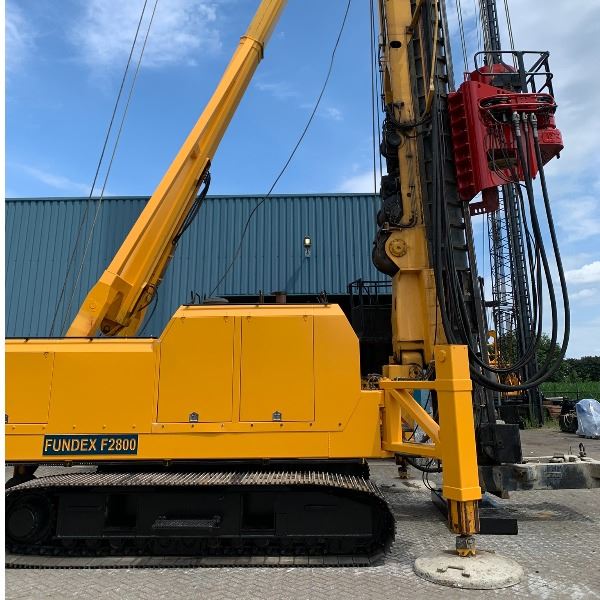

The Fundex F2800  is a large drilling rig. With an operation weight of approx. 90 tons this robust drilling rig has an impressive capacity. This driling rig has easy manouvre skills and has a fast working speed which results in a high daily production. This Fundex F2800 is equipped with a tube leader which is capable of bearing high torque forces. This makes this drilling rig very suitable for the installation of  vibration free drilled soil displacement piles and also steel casing piles with grout injection. By means of an hydraulic spotter the piles can be positioned fast and accurate onthe the right spot. The Fundex F2800 is equipped with a powerful diesel engine which can be used for powering a rotary head, vibratory hammer, sheet pile pressing machine or hydraulic impact hammer. Therefore this drilling rig is very suitable for various projects on the most challenging project locations.

  • Operational weight (kg) 90 000
  • Advised rotary head (kNm) 450
  • Max pile length (m) 26
  • Engine power (kW / hp)  419 / 570
  • Main winch (kg) 10 000
  • Pull up (kg) 80 000
  • Pull down (kg) 20 000
